ES3C
Manufacturer:
On Semiconductor
Mfr.Part #:
ES3C
Datasheet:
Description:

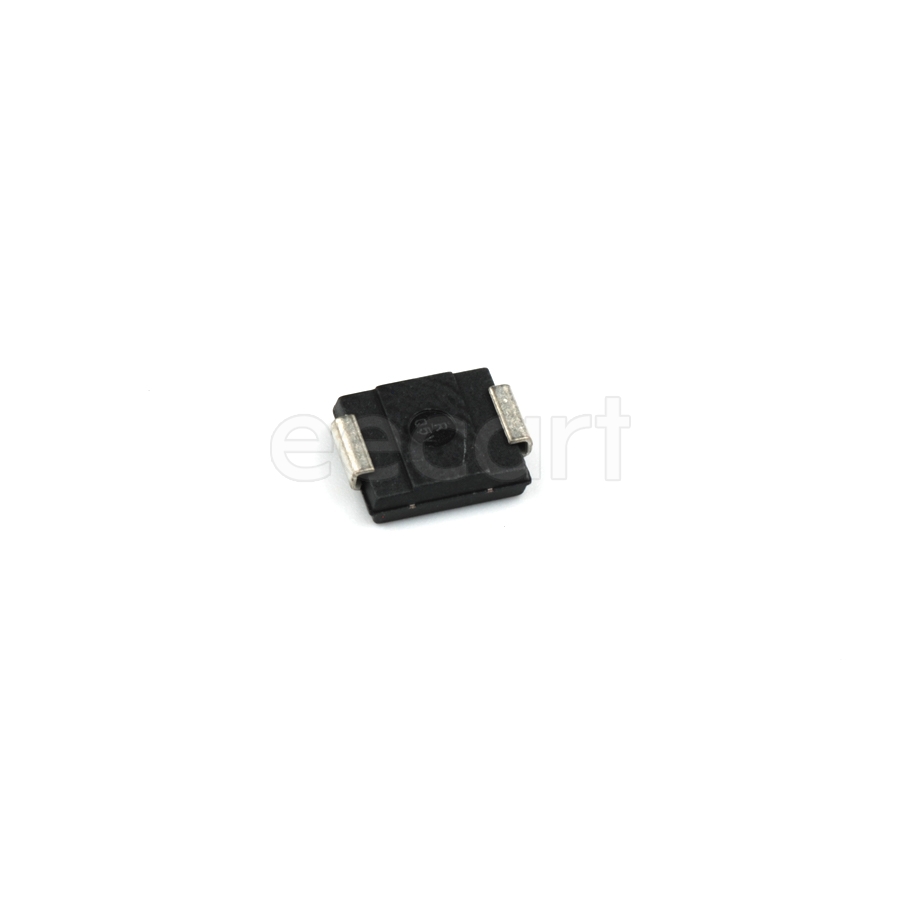

Rectifier Diodes SMC(DO-214AB) SMD/SMT Standard Single Forward Current:3 A Forward Voltage:950 mV Reverse Voltage:150 V
| Parameter | Value |
|---|---|
| Capacitance | 45 pF |
| Voltage Rating (DC) | 150 V |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -50 °C |
| Number of Pins | 2 |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 0.3 g |
| Current Rating | 3 A |
| Output Current | 3 A |
| Forward Current | 3 A |
| Forward Voltage | 950 mV |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Power Dissipation | 1.66 W |
| Reverse Recovery Time | 20 ns |
| Average Rectified Current | 3 A |
| Max Reverse Leakage Current | 10 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 150 V |
| Element Configuration | Single |
| Max Surge Current | 100 A |
| Forward Surge Current (Ifsm) | 100 A |
| Reverse Voltage | 150 V |
| Peak Non-Repetitive Surge Current | 100 A |
| Reverse Current | 10 µA |
| Recovery Time | 20 ns |
| Schedule B | 8541100080 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 months ago) |
| Packaging | Reel |
| Type | Standard |
Stock: 8503
Distributors
pcbx
pcbxUnit Price$0.38812
Ext.Price$0.38812
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38812 | $0.38812 |
| 10 | $0.25338 | $2.53380 |
| 25 | $0.24701 | $6.17525 |
| 50 | $0.24080 | $12.04000 |
| 100 | $0.23475 | $23.47500 |
| 300 | $0.20576 | $61.72800 |
| 500 | $0.18035 | $90.17500 |
| 1000 | $0.16282 | $162.82000 |
| 3000 | $0.13144 | $394.32000 |
